C - PLUS-PLUS-KRUSKAL'S ALGORITHM - MINIMUM SPANNING TREE - CODE




Example :



#include <iostream>
#include <vector>
#include <map>
#include <algorithm>

using namespace std;

class Node {

	public :

    string data;
    int rank;
    Node *parent;
};

class Edge{

	public :

    string startVertex;
    string endVertex;

    int value;
};

bool comparator(const Edge& edge1, const Edge& edge2) {
   return edge1.value < edge2.value;
}

class KruskalMST {

	public :

    map<string, Node*> nodeMap;

    vector<string> vertices;

    vector<Edge> edgeList;

    void insertVertex(string vertex) {

        vertices.push_back(vertex);
    }

    void insertEdge(string vertex1, string vertex2, int edgeVal) {

        Edge edge;

        edge.startVertex = vertex1;
        edge.endVertex = vertex2;
        edge.value = edgeVal;

        edgeList.push_back(edge);
    }

    // Create groups with only one vertex.
    void createSet(string data){

        Node *node = new Node();
        node->data = data;
        node->rank = 0;
        node->parent = node;
        nodeMap[data] = node;
    }

    //Combines two groups into one. Does union by rank.
    void unionRank(string vertex1, string vertex2){

        Node *node1 = nodeMap[vertex1];
        Node *node2 = nodeMap[vertex2];

        Node *parent1 = findSet(node1);
        Node *parent2 = findSet(node2);

        //If they are in the same group, do nothing.
        if(parent1->data == parent2->data) {

            return;
        }
        //Else whose rank is higher becomes parent of other.
        if (parent1->rank <= parent2->rank) {

            //Increment rank only if both sets have same rank.
            parent1->rank = (parent1->rank == parent2->rank) ? parent1->rank + 1 : parent1->rank;
            parent2->parent = parent1;
        }
        else {

            parent1->parent = parent2;
        }
    }

    // Find the representative of this set

    string findSet(string data){

        return findSet(nodeMap[data])->data;
    }

    // Finds the leader/representative recursivly and does PATH COMPRESSION as well.
    Node* findSet(Node *node){

        Node *parent = node->parent;
        if (parent == node) {

            return parent;
        }
        node->parent = findSet(node->parent);
        return node->parent;
    }


    // Find Minimum Spanning Tree using Kruskal's Algorithm.
    vector<Edge> createMST() {

        vector<Edge> resultEdge;

        //Sort all edges in Ascending order.
        sort(edgeList.begin(), edgeList.end(), &comparator);

        KruskalMST kruskalMST;

        //Create as many groups as the total vertices.
        for (string vertex : vertices) {

            kruskalMST.createSet(vertex);
        }

        for (Edge edge : edgeList) {

            //Get the sets of two vertices of the edge.
            string root1 = kruskalMST.findSet(edge.startVertex);
            string root2 = kruskalMST.findSet(edge.endVertex);

            //check if the vertices are on the same or different set.
            //If vertices are in the same set then ignore the edge.
            if (root1 == root2) {

                continue;
            }
            else {

                // If vertices are in different sets then add the edge to result and union
                // these two sets into one.

                resultEdge.push_back(edge);
                kruskalMST.unionRank(edge.startVertex, edge.endVertex);
            }
        }
        return resultEdge;
    }
};

int main() {

    KruskalMST kruskalMST;

    // Adding vertices one by one

    kruskalMST.insertVertex("a");
    kruskalMST.insertVertex("b");
    kruskalMST.insertVertex("c");
    kruskalMST.insertVertex("d");
    kruskalMST.insertVertex("e");

    //Adding edges with values.

    kruskalMST.insertEdge("a", "b", 1);
    kruskalMST.insertEdge("b", "e", 8);
    kruskalMST.insertEdge("e", "d", 3);
    kruskalMST.insertEdge("d", "a", 4);
    kruskalMST.insertEdge("a", "c", 5);
    kruskalMST.insertEdge("c", "e", 9);
    kruskalMST.insertEdge("c", "d", 12);

    vector<Edge> mstList = kruskalMST.createMST();

    for (Edge edge : mstList) {

        cout <<  "The edge : " << edge.startVertex << " -- " << edge.endVertex << " with value : " << edge.value << endl;
    }
}


Output :



  The edge : a -- b with value : 1
  The edge : e -- d with value : 3
  The edge : d -- a with value : 4
  The edge : a -- c with value : 5

Brief recap of Kruskal's Algorithm for Minimum Spanning Tree


Note : We have used 'Union by Rank' and 'Path Compression' technique. You can have a look at it. If not, not worries. We will explain in brief.

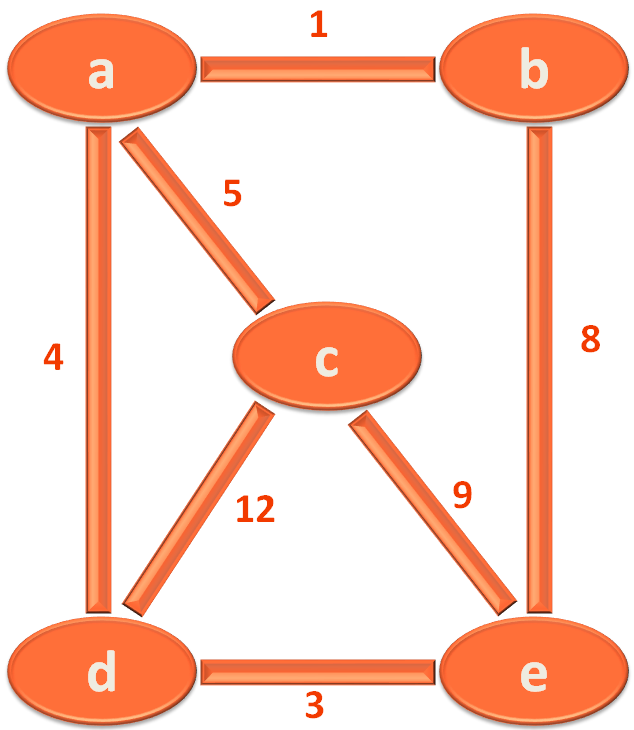

So, we will be dealing with the below Graph,

java_Collections
  1. First thing we do is, sort all the edges in ascending order.
    ruby

  2. Then, create individual groups for each vertices and initialise with rank 0.

    1st Group - {a}  --- rank 0
    2nd Group - {b}  --- rank 0
    3rd Group - {c}  --- rank 0
    4th Group - {d}  --- rank 0
    5th Group - {e}  --- rank 0


    Now, we need to elect a leader for each group. And, since there is only one vertex in each group, the individual group member will be marked as leader of their group.

    Say for example,

    a is the leader of group 1, b is leader of group 2 and so on.

    And leaders are given a superior rank 0.

  3. Next, take the sorted edges, one by one, connect them and increment the leader rank by 1.

    For Example :

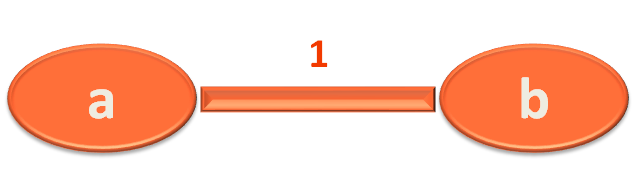

    The first sorted edge is a,b. So, we connect a and b,

    a --- b


    Then take a from group 1 and b from group 2.

    1st Group - {a}  --- rank 0

    2nd Group - {b}  --- rank 0


    And, combine a and b in group 1.

    1st Group - {a,b}


    Now, it is time to elect a leader for 1st Group.

    And a was the leader/representative of group 1 and now, b came to group 1.

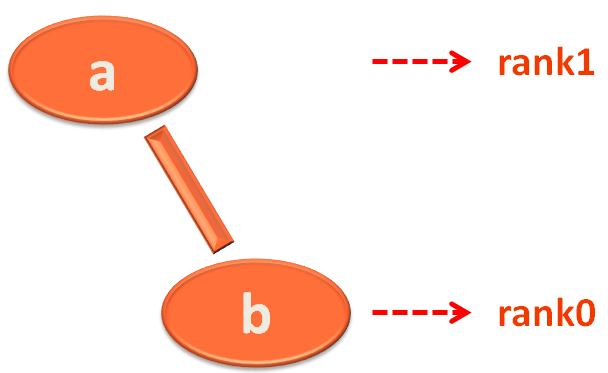

    So, we make b the child of a. And since a is the leader, a is given rank 1.
    ruby


    And the same steps are repeated.

    This feature of combining two groups and ranking them is Union by Rank.

Explanation of the Node Class in the above code


In the above code, we have a class called Node. Which looks a little different.


class Node {

	public :

	string data;
	int rank;
	Node *parent;
};

You can think of the Node class as a representation of a Vertex.


And how is that so?


Just think, a vertex should have a rank and its name. And so we have


string data
int rank

But the only mystery is, what is Node *parent?


A Node type variable inside a Node Class! Looks Strange! Right?


Well! It is like a connection, we are trying to establish between Vertices.


So, when the vertices are created for the first time, they should the leader of their group and off course they should be their parent.


Say for example when vertex a and b is created, a is in group 1 and b is in group 2.

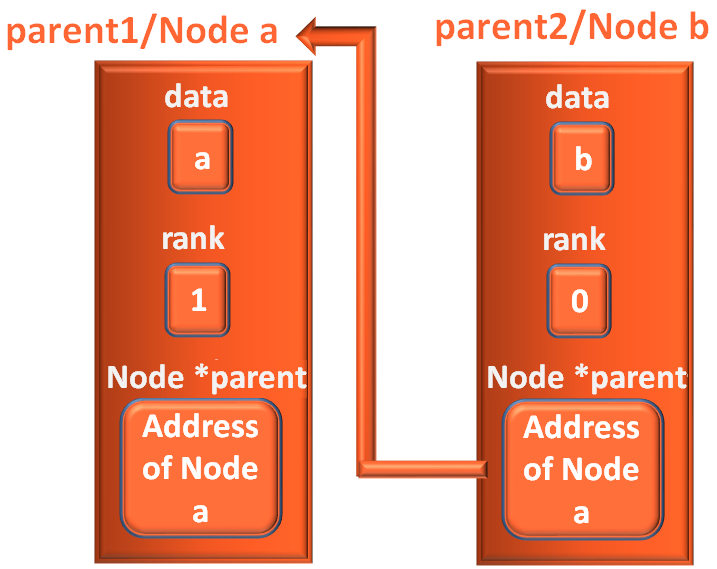

Node *parent for vertex b is the Address of Node b (Since vertex b is the leader of group 2).


And Node parent for vertex a is Node a (Since vertex a is the leader of group 1).

java_Collections

Next, when b is put into group 1, the leader of group 1 is a.


So, vertex b is a child of a.


And Node parent of b is Node a now.

java_Collections
java_Collections

The vertex a is named as Node a and vetex b is named as Node b. We have seen how the connection is established.


Explanation of the Edge Class in the above code


As we have seen, the Node Class is used to store the contents of the Vertices.


Similarly, the Edge Class is used to store the contents of the Edges.


class Node {

	public :

	string data;
	int rank;
	Node *parent;
};

The Edge Class has three attributes,

  1. startVertex

  2. endVertex

  3. value
    ruby

The above one is the example of an edge that has,


startVertex = a
endVertex = b
value = 1

Code explanation of Kruskal's Algorithm for Minimum Spanning Tree


So, firstly we construct the graph by adding the vertices.


// Adding vertices one by one

insertVertex("a")
insertVertex("b")
insertVertex("c")
insertVertex("d")
insertVertex("e")

Then adding the edges with its values,


//Adding edges with values.

insertEdge("a", "b", 1)
insertEdge("b", "e", 8)
insertEdge("e", "d", 3)
insertEdge("d", "a", 4)
insertEdge("a", "c", 5)
insertEdge("c", "e", 9)
insertEdge("c", "d", 12)

Then we call the createMST() method to construct Minimum Spanning Tree using Kruskal's Algorithm.


vector<Edge> mstList = kruskalMST.createMST();

Explanation of vector<Edge> createMST() method


vector<Edge> createMST() {

	vector<Edge> resultEdge;

	//Sort all edges in Ascending order.
	sort(edgeList.begin(), edgeList.end(), &comparator);

	KruskalMST kruskalMST;

	//Create as many groups as the total vertices.
	for (string vertex : vertices) {

		kruskalMST.createSet(vertex);
	}

	for (Edge edge : edgeList) {

		//Get the sets of two vertices of the edge.
		string root1 = kruskalMST.findSet(edge.startVertex);
		string root2 = kruskalMST.findSet(edge.endVertex);

		//check if the vertices are on the same or different set.
		//If vertices are in the same set then ignore the edge.
		if (root1 == root2) {

			continue;
		}
		else {

			// If vertices are in different sets then add the edge to result and union
			// these two sets into one.

			resultEdge.push_back(edge);
			kruskalMST.unionRank(edge.startVertex, edge.endVertex);
		}
	}
	return resultEdge;
}

As we know, the first task is to sort the Edges,


//Sort all edges in Ascending order.
sort(edgeList.begin(), edgeList.end(), &comparator);

The next task would be, to create individual groups for each Vertex using the createSet() method.


//Create as many groups as the total vertices.
for (string vertex : vertices) {

	kruskalMST.createSet(vertex);
}

As we know vertices


vector<string> vertices;

contains an Array of Vertices. So, we take the vertices one by one using the for range loop and call the creteSet() method.


createSet(vertex)

Explanation of void createSet(string data) method


// Create groups with only one vertex.
void createSet(string data){

	Node *node = new Node();
	node->data = data;
	node->rank = 0;
	node->parent = node;
	nodeMap[data] = node;
}

The parameter data string contains the vertex(Say a for vertex a).


So, we create a Node object to hold the actual vertex,


Node *node = new Node();

(Say value a for vertex a)


node->data = data

the rank of the vertex.


node->rank = 0

rank is initialised to 0 because initially all the vertices would be the leader of their group and the leader is ranked 0.


The next line is extremely important,


node->parent = node

Now since, vertex a is the leader of their group. node->parent is vertex a itself. And thus, node->parent would be holding the address of vertex a itself (i.e. node).


Below is the example of vertex a.

java_Collections

Then we put the created node in the Map myMap,


map<string, Node*> nodeMap;

With the key as the value of vertex(a in this case) and value as the created node.


nodeMap[data] = node;

All the Nodes/vertices are created in the same way and put in the map.

java_Collections

Let us come back to the createMST() method again,


And since we got all the groups created.


Now, it's time for us to implement the actual logic.


And we have declared resultEdge vector that will store all the edges included in the Minimum Spanning Tree.


vector<Edge> edgeList;

Now, we know that the veector edgeList,


vector<Edge> edgeList;

Contains the List of all the edges in the Graph(Off course Sorted in ascending order done earlier).


And what will will do is take Vector edgeList one by one and try constructing the Minimum Spanning Tree.


for (Edge edge : edgeList) {

	//Get the sets of two vertices of the edge.
	string root1 = kruskalMST.findSet(edge.startVertex);
	string root2 = kruskalMST.findSet(edge.endVertex);

	//check if the vertices are on the same or different set.
	//If vertices are in the same set then ignore the edge.
	if (root1 == root2) {

		continue;
	}
	else {

		// If vertices are in different sets then add the edge to result and union
		// these two sets into one.

		resultEdge.push_back(edge);
		kruskalMST.unionRank(edge.startVertex, edge.endVertex);
	}
}

So, the for loop, takes the sorted edges one by one,


for (Edge edge : edgeList)

And the first thing it does is, tries to find the leader of each vertex using the findSet() method,


//Get the sets of two vertices of the edge.
string root1 = kruskalMST.findSet(edge.startVertex);
string root2 = kruskalMST.findSet(edge.endVertex);

Explanation of string findSet(string data) method


// Find the representative of this set
string findSet(string data){

	return findSet(nodeMap[data])->data;
}

Now, the cool thing to note is, the return statement,


return findSet(nodeMap[data])->data;

Calls another findSet(...) method.


Let's dive in to understand,


nodeMap[data] from the return statement,


return findSet(nodeMap[data])->data;

gives us a Node type variable.


How?


Because, we have seen map holds Key as the Vertex name (Say a) and its Node as value.


And if we pass the value a to the Map,


nodeMap[a]

We get the Node object of a.


So, this time we will be calling the findSet(...) method, that accepts Node as parameter.


And, we have the Node* findSet(Node *node) method that gets called.


Explanation of Node* findSet(Node *node) method


// Finds the leader/representative recursivly and does PATH COMPRESSION as well.
Node* findSet(Node *node){

	Node *parent = node->parent;
	if (parent == node) {

		return parent;
	}
	node->parent = findSet(node->parent);
	return node->parent;
}

So, in the first line, we have created a Node variable called parentNode and initialised the parentNode variable with node->parent from the parameter Node *node.


Note : Since, '*parent' from the Node 'Node *parent', contains the address of the next Node. We have used '*' from '*parent' to get the value at that address.

Now let's say, we have passed Node a and the parent of Node a is Node a(Because Node a is the leader).


Node *parent = node->parent;

Then we check if the Node parent is equal to the node from parameter Node node.


if (parent == node) {

	return parent
}

In this case Node parent and Node node are equal.


So, the Node parent is returned.


But! Yes there is a BUT.


Say, the node b was passed, when it was a child of a.

java_Collections
java_Collections

Now, let us relook the steps for Node b,


Node *parent = node->parent;

So, Node parent would be Node a.


And Node parent would be holding the Node a.


Then we check if the Node parentNode is equal to the node from parameter Node node.


if (parent == node) {

	return parent
}

And if condition is not satisfied as


Node parent is holding Node a and node is holding Node b.


Fair enough!


Then we go to the next line, where findSet(Node node) method is called recursively,


node->parent = findSet(node->parent);

Until it finds the parent and finally parent is returned.


return node->parent;

So, let us come back to createMST() method again.


Let us take the example of edge

java_Collections

string root1 = kruskalMST.findSet(edge.startVertex);
string root2 = kruskalMST.findSet(edge.endVertex);

Where, edge.startVertex is a and edge.endVertex is b.


And we found the parent of a is a itself and parent of b is b.


So,


root1 = "a"

and


root2 = "b"

And, if we see the code again,


	for (Edge edge : edgeList) {

		//Get the sets of two vertices of the edge.
		string root1 = kruskalMST.findSet(edge.startVertex);
		string root2 = kruskalMST.findSet(edge.endVertex);

		//check if the vertices are on the same or different set.
		//If vertices are in the same set then ignore the edge.
		if (root1 == root2) {

			continue;
		}
		else {

			// If vertices are in different sets then add the edge to result and union
			// these two sets into one.

			resultEdge.push_back(edge);
			kruskalMST.unionRank(edge.startVertex, edge.endVertex);
		}
	}

There is this if statement that checks,


if (root1 == root2)

But in this case root1 is a and root2 is b.


So, we come to the else part.


		else {

			// If vertices are in different sets then add the edge to result and union
			// these two sets into one.

			resultEdge.push_back(edge);
			kruskalMST.unionRank(edge.startVertex, edge.endVertex);
		}

Now since, we are in the else part. This edge,

java_Collections

must be included in the Minimum Spanning Tree.


resultEdge.push_back(edge);

And thus, we have added it to the resultEdge list.


So, the next task would be to combine a and b in the same group.


kruskalMST.unionRank(edge.startVertex, edge.endVertex);

And this task of combining is done by the unionRank(...) method.


Explanation of void unionRank(string vertex1, string vertex2) method


//Combines two groups into one. Does union by rank.
void unionRank(string vertex1, string vertex2){

	Node *node1 = nodeMap[vertex1];
	Node *node2 = nodeMap[vertex2];

	Node *parent1 = findSet(node1);
	Node *parent2 = findSet(node2);

	//If they are in the same group, do nothing.
	if(parent1->data == parent2->data) {

		return;
	}
	//Else whose rank is higher becomes parent of other.
	if (parent1->rank <= parent2->rank) {

		//Increment rank only if both sets have same rank.
		parent1->rank = (parent1->rank == parent2->rank) ? parent1->rank + 1 : parent1->rank;
		parent2->parent = parent1;
	}
	else {

		parent1->parent = parent2;
	}
}

Let us take the example of

java_Collections

to explain the union(...) method.


Node *node1 = nodeMap[vertex1];
Node *node2 = nodeMap[vertex2];

And


node2 will have the contents of Node b and node1 will have the contents of Node a.

java_Collections

In the next two lines,


Node *parent1 = findSet(node1);
Node *parent2 = findSet(node2);

We try to find the parents/leaders of node1 and node2 using Node* findSet(Node *node) method which we have already seen.


And in this case, the parent of a is a and the parent of b is b.

java_Collections

Next, we check, if both the parent of the vertices are equal or not,


if(parent1->data == parent2->data) {

	return;
}

If both the parents are equal, we do nothing.


But in this case, they are not equal as


parent1->data = "a"

and


parent2->data = "b"

So, we come to the next if statement.


//Else whose rank is higher becomes parent of other.
if (parent1->rank <= parent2->rank) {

	//Increment rank only if both sets have same rank.
	parent1->rank = (parent1->rank == parent2->rank) ? parent1->rank + 1 : parent1->rank;
	parent2->parent = parent1;
}
else {

	parent1->parent = parent2;
}

In the if statement, we check if parent1.rank is less than or equal to parent2.rank.


if (parent1->rank <= parent2->rank)

And in this case,


parent1.rank and parent2.rank has the same rank i.e. 0 (From the above diagram).


And in the next line,


	//If they are in the same group, do nothing.
	if(parent1->data == parent2->data) {

		return;
	}

We increment the parent1->rank only if parent1->rank is equal to parent2->rank.


And in this case parent1->rank is equal to parent2->rank,


So, we increment parent1.rank by 1.


//Increment rank only if both sets have same rank.
parent1->rank = (parent1->rank == parent2->rank) ? parent1->rank + 1 : parent1->rank;

And parent1.rank becomes,


parent1.rank = 1
java_Collections


Then, we initialise parent2.parent with parent1.


parent2->parent = parent1
java_Collections


And we can see that the connection between a and b is established,

java_Collections

And continuing this way, we get the Minimum Spanning Tree,

java_Collections
