Insertion Sort is a sorting technique where we pick an element and place it in the right location so that it is sorted. It is same as organizing a pack of card while playing a card game.
Let us simplify with the below example :

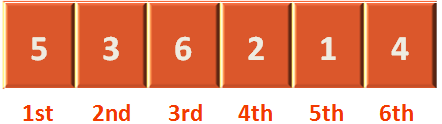

Below is the way the students have sat :
i.e. Roll no 5 has sat in the 1st location, Roll 3 in the 2nd location and so on.
Now, if you follow the insertion sort algorithm to sort the students based on roll numbers, it would be as follows :
1. You start with the student in the 2nd location(Let's call this location a key) and compare his roll no with student of 1st location.
And found,
2. Then you start with the student in the 3rd location(Let's mark this location a key) and compare his roll number with the roll number of the student sitting in 2nd and 1st location.(1st and 2nd location is already sorted).
And found,
So, roll number 6 will stay in 3rd location itself.
3. Now, we start with the student in the 4th location(Let's mark this location with a key) and compare with 3rd, 2nd and 1st location.
And found,
Again we compared roll no 2 with 5 and found
Again we compared roll 2 with 3 and found
4. Now, we will start with the 5th location(Let's mark this location a key). And compare roll no of 5th location student with 4th, 3rd, 2nd and 1st location.
And we have seen,
Again, we can see,
Now,
Again,
5. Then, we will start with the 6th location(Let's mark this location a key). And compare roll no of 6th location student with 5th, 4th, 3rd, 2nd and 1st location.
And we have seen,
Again, we can see,
Now,
So, that is exactly how Insertion Sort works.
i.e.
1. You pick an element from the 2nd location, call it a key.
Then compare the key element (i.e. 3) with the elements on the left side. And place the key element (i.e. 3) in the appropriate place. Now, the elements in 1st and 2nd location is sorted.
2. Then we pick the element in the 3rd location and mark it as key.
Now, we compare this key element (i.e. 5) with the elements on the left side. And place the key element (i.e. 5) in the appropriate place, so that it is sorted.
We continue this process until all the elements are sorted.
