GO - BELLMAN FORD'S ALGORITHM - CODE

JAVA PYTHON GO KOTLIN C# RUBY C++ Java Script

Example :

package main

import "fmt"
import "math"

var vertices []string
var edgeList []Edge

var vertexDistance map[string]int
var vertexParent map[string]string

type Edge struct {

    startVertex string
    endVertex string

    value int
}

func insertVertex(vertex string) {

    vertices = append(vertices, vertex)
}

func insertEdge(vertex1 string, vertex2 string, edgeVal int) {

    var edge Edge

    edge.startVertex = vertex1
    edge.endVertex = vertex2
    edge.value = edgeVal

    edgeList = append(edgeList, edge)
}


func getShortestPath(sourceVertex string) {

	vertexDistance = make(map[string]int)
    vertexParent = make(map[string]string)

    //Set the initial distance of every vertex to infinity
    for _, vertex := range vertices {
        vertexDistance[vertex] = math.MaxInt64
        vertexParent[vertex] = ""
    }

    //Initialise the distance of source vertex to be 0
	vertexDistance[sourceVertex] = 0

    V := len(vertices)

    for i := 0; i < V - 1 ; i++ {
        for _, edge := range edgeList {
            u := edge.startVertex
            v := edge.endVertex

            //relax the edge
            if (vertexDistance[u] + edge.value < vertexDistance[v]) {
                vertexDistance[v] = vertexDistance[u] + edge.value
                vertexParent[v] = u
            }
        }
    }

    //Relax all the edges again. If we are still getting a lesser distance then
    //there is negative weight cycle in the graph.
    for _, edge := range edgeList {
        u := edge.startVertex
        v := edge.endVertex
        if (vertexDistance[u] + edge.value < vertexDistance[v]) {
            fmt.Println("The Graph contains negative weight cycle")
            return
        }
    }
}

func printShortestPath() {

    for key, value := range vertexDistance {

        fmt.Println("The shortest distance between a and ",key," is ",value)
    }
}


func main() {

    // Adding vertices one by one

    insertVertex("a")
    insertVertex("b")
    insertVertex("c")
    insertVertex("d")
    insertVertex("e")

    //Adding edges with values.

    insertEdge("a", "b", 18)
    insertEdge("a", "c", 2)
    insertEdge("a", "d", 4)

    insertEdge("c", "e", 1)

    insertEdge("e", "b", 5)

    insertEdge("d", "c", 12)
    insertEdge("d", "e", 3)

    getShortestPath("a")

    printShortestPath()
}

Output :

The shortest distance between a and a is 0
The shortest distance between a and b is 8
The shortest distance between a and c is 2
The shortest distance between a and d is 4
The shortest distance between a and e is 3

Code explanation for Bellman Ford's Algorithm - Single Source Sortest path

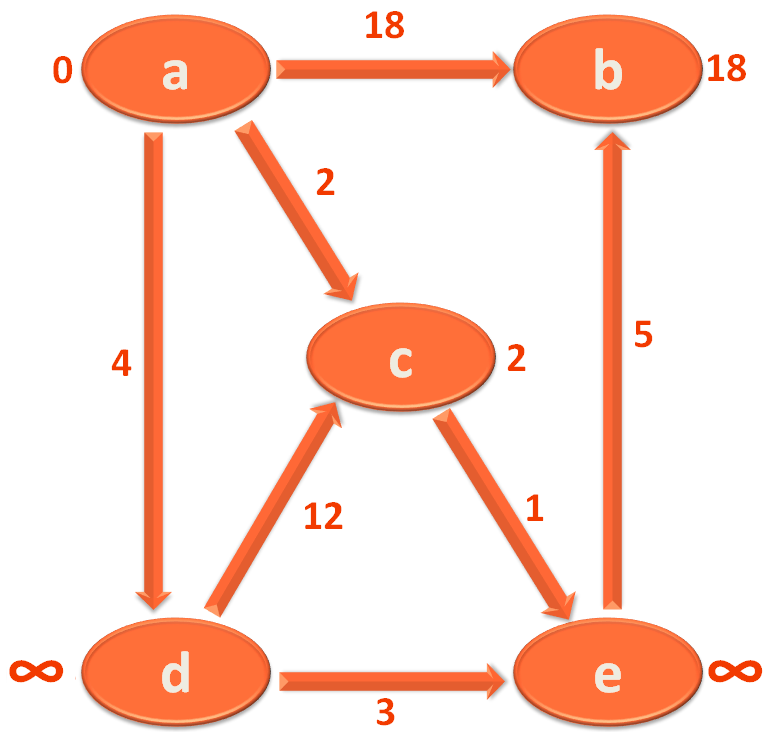

For explanation purpose we will be taking the below Graph :

So, the first thing we will do is construct create an Array,

var vertices []string

And store all the Vertices there,

insertVertex("a")
insertVertex("b")
insertVertex("c")
insertVertex("d")
insertVertex("e")

The next thing we would do is, list out all the Edges.

So, we would create an Array,

var edgeList []Edge

And store all the Edges in the edgeList,

insertEdge("a", "b", 18)
insertEdge("a", "c", 2)
insertEdge("a", "d", 4)

insertEdge("c", "e", 1)

insertEdge("e", "b", 5)

insertEdge("d", "c", 12)
insertEdge("d", "e", 3)

And we have the method insertEdge(...) that initialises the Edges,

func insertEdge(vertex1 string, vertex2 string, edgeVal int) {

	var edge Edge

	edge.startVertex = vertex1
	edge.endVertex = vertex2
	edge.value = edgeVal

	edgeList = append(edgeList, edge)
}

The insertEdge(...) method is quite simple to understand.

As we have seen, we already have the Edge structure :

type Edge struct {

	startVertex string
	endVertex string

	value int
}

We have created an Edge object,

var edge Edge

And initialised the values,

edge.startVertex = vertex1
edge.endVertex = vertex2
edge.value = edgeVal

Finally, added the edge object to the Array edgeList.

edgeList = append(edgeList, edge)

And one by one, we add all the edges to the Array edgeList. And, finally the Array edgeList has all the Edges in it.

Now, since we have all the edges in the Array edgeList. It is time for us to call the method getShortestPath(...) by passing the start vertex a to it.

getShortestPath("a")

Explanation of 'func getShortestPath(sourceVertex string)' method :

func getShortestPath(sourceVertex string) {

	vertexDistance = make(map[string]int)
	vertexParent = make(map[string]string)

	//Set the initial distance of every vertex to infinity
	for _, vertex := range vertices {
		vertexDistance[vertex] = math.MaxInt64
		vertexParent[vertex] = ""
	}

	//Initialise the distance of source vertex to be 0
	vertexDistance[sourceVertex] = 0

	V := len(vertices)

	for i := 0; i < V - 1 ; i++ {
		for _, edge := range edgeList {
			u := edge.startVertex
			v := edge.endVertex

			//relax the edge
			if (vertexDistance[u] + edge.value < vertexDistance[v]) {
				vertexDistance[v] = vertexDistance[u] + edge.value
					vertexParent[v] = u
				}
			}
		}

	//Relax all the edges again. If we are still getting a lesser distance then
	//there is negative weight cycle in the graph.
	for _, edge := range edgeList {
		u := edge.startVertex
		v := edge.endVertex
		if (vertexDistance[u] + edge.value < vertexDistance[v]) {
			fmt.Println("The Graph contains negative weight cycle")
			return
		}
	}
}

So, what we have done is, created two Maps.

The first Map vertexDistance stores vertex as key and the value as the one we were marking each vertex with.

vertexDistance = make(map[string]int)

In simple words,

If we take the example of the Edge a,b with value 18.

The Vertex a is marked with 0 and Vertex b is marked with 18.

So, the Map vertexDistance stores Vertex a as key and 0 as value.

Similarly, the Map vertexDistance stores Vertex b as key and 18 as value.

Quite clear !

Now, let us see the second Map,

vertexParent = make(map[string]string)

The second Map vertexParent stores vertex as key and the value as its immediate source vertex.

If we take the same example of the Edge a,b with value 18.

So, the Map vertexParent stores Vertex b as key and vertex a as value.

Similarly, if we take the example of the Edge d,e with length 3.

Then the Map vertexParent stores Vertex e as key and vertex d as value.

Fair enough !

So, the next thing we will do is, mark all the Vertices with ∞ except the starting vertex a, which should be marked with 0.

And to do this we will take all the Vertices one by one and put in the Map vertexDistance and initialise the value of each Vertex to ∞ or Integer.Max_value.

And at the same time, take the vertices and put in the Map vertexParent and initialise the value of each Vertex to null.

for _, vertex := range vertices {
	vertexDistance[vertex] = math.MaxInt64
	vertexParent[vertex] = ""
}
vertexDistance[sourceVertex] = 0

Then comes the for loop where in each iteration the marking and relaxing process takes place. And we iterate it V-1 times. Where V is the number of Vertices.

for i := 0; i < V - 1 ; i++ {
	for _, edge := range edgeList {
		u := edge.startVertex
		v := edge.endVertex

		//relax the edge
		if (vertexDistance[u] + edge.value < vertexDistance[v]) {
			vertexDistance[v] = vertexDistance[u] + edge.value
			vertexParent[v] = u
		}
	}
}

The above for loop is quite simple.

As said we iterate the for loop V-1 times.

for i := 0; i < V - 1 ; i++

There is a nested for loop inside it. Which collects all the edges from the Array edgeList,

And iterates through all the edges from the Array edgeList, one by one.

for _, edge := range edgeList {
	u := edge.startVertex
	v := edge.endVertex
	if (vertexDistance[u] + edge.value < vertexDistance[v]) {
		fmt.Println("The Graph contains negative weight cycle")
		return
	}
}

So, in the above nested for loop, it takes the the first edge,

And the startVertex i.e. a is put in a String u,

u := edge.startVertex

and the endVertex i.e. b is put in a String v.

v := edge.endVertex

So, u would contain vertex a and v would contain the vertex b.

Next, we come across the line that has the if statement. Where the actual relaxation process takes place.

if (vertexDistance[u] + edge.value < vertexDistance[v]) {
	vertexDistance[v] = vertexDistance[u] + edge.value
	vertexParent[v] = u
}

So, if we have a closer look at the if statement,

if (vertexDistance[u] + edge.value < vertexDistance[v])

The if statement has,

vertexDistance[u]

edge.value

vertexDistance[v]

The vertexDistance is a Map that has the Key as Vertex name and value as the value marked with the current vertex.

Currently all the vertices are marked with ∞. Except the starting vertex a which is marked with 0.

Now, let us relook the condition inside if statement.

if (vertexDistance[u] + edge.value < vertexDistance[v])

The variable u has the value a inside it.

So, vertexDistance[u] gives us 0(As the value associated with the key a is 0 in vertexDistance Map).

Similarly, vertexDistance[v] gives us ∞(As the value associated with the key b is ∞ in vertexDistance Map).

And edge.value gives us 18 (Because the current edge we are dealing with is a,b with value 18).

Now, if we see the add operation,

vertexDistance[u] + edge.value

It would be 0 + 18, i.e. 18

and check if the added value 18 is less than vertexDistance[v] (i.e. ∞).

if (vertexDistance[u] + edge.value < vertexDistance[v])

And obviously, 18 is less than ∞.

So, we get into the if block and relax/replace the new added value vertexDistance[u] + edge.value i.e. 18 to the value of vertex b

vertexDistance[v] = vertexDistance[u] + edge.value

At the same time change the parent of b to a in vertexParent.

Note : In the Map vertexDistance, we are storing the vertex and its marked distance (i.e. Vertex b and 18). And to track the immediate parent of vertex b we are using the Map vertexParent. Where we are storing the immediate parent of b in parallel.

Same way we have to take the next edge and continue with the for loop.

for _, edge := range edgeList {
	u := edge.startVertex
	v := edge.endVertex

	//relax the edge
	if (vertexDistance[u] + edge.value < vertexDistance[v]) {
		vertexDistance[v] = vertexDistance[u] + edge.value
		vertexParent[v] = u
	}
}

So, the next edge in the array edgeList is,

Similarly we take the startVertex and endVertex of edge object in u and v.

So, right now u has a and v has c.

Next, we add the current value of vertex a in vertexDistance (i.e. 0) and the current value of the edge (i.e. 2)

vertexDistance[u] + edge.value

and check if the added value(i.e. 2) is less than the value of vertex d in vertexDistance (i.e. ∞).

if (vertexDistance[u] + edge.value < vertexDistance[v])

And obviously, 2 is less than ∞.

So, we get into the if block and relax/replace the new added value vertexDistance[u] + edge.value i.e. 2 to the value of vertex c

vertexDistance[v] = vertexDistance[u] + edge.value

At the same time change the parent of c to a in vertexParent.

And if we continue the same process, we get the Stortest Path from source vertex a to all the other Vertices.

Well ! We are not done yet.

What if there is a negative weight cycle ?

And we have the code to deal with negative weight cycle.

//Relax all the edges again. If we are still getting a lesser distance then
//there is negative weight cycle in the graph.
for _, edge := range edgeList {
	u := edge.startVertex
	v := edge.endVertex
	if (vertexDistance[u] + edge.value < vertexDistance[v]) {
		fmt.Println("The Graph contains negative weight cycle")
		return
	}
}

The above code is quite simple to understand.

We usually continue iterating (V-1) times. Where V is the number of vertices. In this case we iterate V times. And if the weight reduces then there is a negative weight cycle.

Running time of Bellman Ford Algorithm

Since we are running a nested for loop.

So, the running time is : O(VE)

Where V is the number of Vertices

And E is the number of Edges.
