C - PLUS-PLUS-LINKED LIST CODE




Example :



#include <iostream>

using namespace std;

class Node {

	public :

    string data;
    Node *next;

    Node(string data) {
        this -> data = data;
        next = NULL;
    }
};

class LinkedList {

	public :

    Node *headNode;

    LinkedList() {

       headNode = NULL;
    }

    void insertFirst(string value) {

        Node *node = new Node(value);
        node -> next = headNode;
        headNode = node;
    }

    void insertNode(string value) {

        Node *newNode = new Node(value);

        if (headNode == NULL) {
            headNode = newNode;
        }
        else {

            Node *nextNode = headNode;
            while (nextNode -> next != NULL) {
                nextNode = nextNode -> next;
            }

            nextNode -> next = newNode;
        }
    }

    void insertNext(Node *previousNode, string value) {

        Node *node = new Node(value);

        node -> next = previousNode->next;
        previousNode -> next = node;
    }

    void deleteFirst() {

        if (headNode == NULL)
            return;
        else
            headNode = headNode -> next;
    }


    void deleteNode(int position) {

        if (headNode == NULL)
            return;

        if (position == 0) {
            headNode = headNode -> next;
            return;
        }

        Node *node = headNode;

        for (int i = 1; node != NULL && i < position; i++)
            node = node -> next;

        if (node == NULL || node->next == NULL)
            return;


        Node *next = node->next->next;

        node->next = next;
    }

    void displayList() {
        Node *node = headNode;
        while (node != NULL) {
            cout <<  node->data << endl;
            node = node->next;
        }
    }
};

int main() {

    LinkedList linkedList;

    linkedList.insertNode("John");
    linkedList.insertNode("Pradeep");
    linkedList.insertNode("Andrew");
    linkedList.insertNode("Beck");

    linkedList.displayList();

    linkedList.deleteNode(1);

    cout <<  "--------" << endl;

    linkedList.displayList();

}


Output :



  John
  Pradeep
  Andrew
  Beck
  --------
  John
  Andrew
  Beck

We have seen that a List that is Linked to each other is a List.

java_Collections

Now, we will learn a new term. i.e. Each item in a List is called a Node.


And we can see there are four records in the above List.


Say, for example, the below record is a Node.

java_Collections

So, far we have seen, there were two records in a Node. First record is the actual data or name (In the above example i.e. John). And the second record contains the pointer to the next Node (The second record of John i.e. 9 in the above case was referring to the location of Pradeep).


Even in our Code, we have created a class called Node.


class Node {

	public :

	string data;
	Node *next;

	Node(string data) {
		this -> data = data;
		next = NULL;
	}
};

The above class Node has two attributes :

  1. string data;

  2. Node *next;

The first attribute string data is fine. It can hold the name "John" or "Pradeep". But what about the second attribute i.e. Node *next?


Don't you think, the second attribute should have an int type variable?So that it can store the pointer to the next Node(i.e. 9 in the above case was referring to the location of Pradeep).


Well! In this case we are trying something different. i.e. We will let C++ decide the next Node.


Sounds Complex?


Stay with me. Things will become easy with each line.


Let us go to the Node class. And as we can see, there is a constructor in the Node class.


Node(string data) {
	this -> data = data;
	next = NULL;
}

So, when we create a Node object, we simply, pass the data or name(Say "John").


Node *node1 = new Node("John");

And the constructor creates a Node object for us, with John as the actual data and next as NULL. Because it is not referring to any Node object yet.

java_Collections

Then the next time, when we create the Node object with Pradeep,


Node *node2 = new Node("Pradeep");
java_Collections


We will make node1 object point to node2 by replacing NULL with node1.

java_Collections

Fair enough!


Now, let us see the Code explanation for List.


Code Explanation for List


So, there are five methods that we have used in the List :

  1. void insertFirst(string value)

    Inserts the Node at the front of the List. In other words, it should be the first element of the List.

  2. void insertNode(string value)

    Inserts the Node at the end of the List.

  3. void insertNext(Node *previousNode, string value)

    We pass the Node after which the current Node needs to be inserted.

  4. void deleteFirst()

    Deletes the first element from the List.

  5. void deleteNode(int position)

    Deletes the Node from a specific position.

Now, let us see the List in action.


So, in the first line we insert the value John,


linkedList.insertNode("John");

By using the insertNode(string value) method.


void insertNode(string value) {

	Node *newNode = new Node(value);

	if (headNode == NULL) {
		headNode = newNode;
	}
	else {

		Node *nextNode = headNode;
		while (nextNode -> next != NULL) {
			nextNode = nextNode -> next;
		}

		nextNode -> next = newNode;
	}
}

So, what we are doing in the insertNode(string value) method is, we are creating a new Node object.


Node *newNode = new Node(value);

And as we have seen there is a constructor in the Node class that helps in initialising the values to the Node object.


And the below Node object is created.

java_Collections

Now, just remember, we have a variable Node headNode, that always points to the first element in the List. And since, this is the first time we are creating the Linked List. The headNode would be initialised.


if (headNode == NULL) {
	headNode = newNode;
}
java_Collections


And we don't go to the else part.


Similarly, we try inserting Pradeep.


linkedList.insertNode("Pradeep");

And the insertNode(string value) method is called.


And the same way, we are creating a new Node object.


Node *newNode = new Node(value);

And as we have seen there is a constructor in the Node class that helps in initialising the values to the Node object.


And the below Node object is created.

java_Collections

Now since, headNode is not NULL


if (headNode == NULL)

And we come to the else part .


	else {
		Node *nextNode = headNode;
		while (nextNode -> next != NULL) {
			nextNode = nextNode -> next;
		}

		nextNode -> next = newNode;
	}

In the else part, we create a Node called newNode and initialise it with headNode.


Node *nextNode = headNode;

And Since the headNode is the Node where John resides.

java_Collections

Then we run a while loop to reach the end of the List.


while (nextNode -> next != NULL) {
	nextNode = nextNode -> next;
}

In this case nextNode->next is not equal to NULL. So, we do not get into the while loop.


And we know newNode contains Pradeep.

java_Collections

And make the nextNode (i.e. The Node containing John) point to newNode.

java_Collections

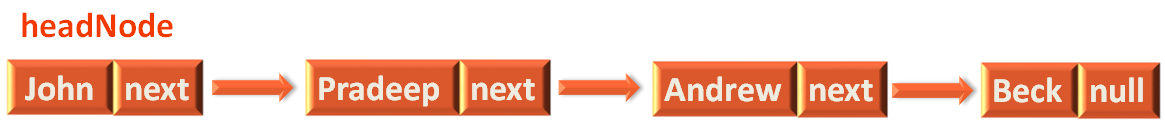

So, the List is formed with two elements.


Similar way, all the other elements are added to the List.

java_Collections

The next is put as next as the linking will be decided by C++ internally.


Now, let us see how do we delete an element from a specific location.


linkedList.deleteNode(1);

So, we will be deleting the second element as the count starts from 0.

java_Collections

And the deleteNode(int position) method is called,


void deleteNode(int position) {

	if (headNode == NULL)
		return;

	if (position == 0) {
		headNode = headNode -> next;
		return;
	}

	Node *node = headNode;

	for (int i = 1; node != NULL && i < position; i++)
		node = node -> next;

	if (node == NULL || node->next == NULL)
		return;

	Node *next = node->next->next;

	node->next = next;
}

The first if statement checks, if the headNode is null or not. i.e. If the headNode is null, then there are no elements in the List. And we stop the execution.


if (headNode == NULL)
	return;

The next if statement checks, if we are asking to remove the first element.


	headNode = headNode->next;
	return;
}

We initialise the headNode with headNode->next i.e. NULL. And the List becomes empty.


If the above two if statement are not satisfied then we come to the next line.


Node *node = headNode;

Where we declare a Node named node and initialise with the headNode Node.


Now since, headNode contains the details of John. node is initialised with John.

java_Collections

Then we run a for loop until we reach a position just before the node that is asked to be deleted.


In this case the second element is asked to be deleted(i.e. 1).


for (int i = 1; node != NULL && i < position; i++)
	node = node -> next;

So, we exit the for loop, when we are at the second node.


Then we do a check to see if the first node is null or is it not pointing to any element?


if (node == NULL || node->next == NULL)
	return;

If so we stop the execution.


Then we create a Node called next. And initialise the Node with it that contains Andrew.


Node *next = node->next->next;
java_Collections


And finally, we make the Node of John point to the Node that contains Andrew.


node->next = next;

And we get the List that doesn't have the the second Node. i.e. The node that contained Pradeep.

java_Collections
