KOTLIN - DEPTH FIRST SEARCH CODE ITERATIVE

JAVA PYTHON GO KOTLIN C# RUBY C++ Java Script

We will be seeing the Iterative way for implementing Depth First Search (DFS). Although there are various ways to write this Iterative code.

However, we will write the code little differently. So that you can corelate it with the Depth First Search (DFS) explanation.

In the Iterative code we will create the stack and maintain it ourselves.

DFS - Depth First Search code for Undirected Graph - Iterative approach

Example :

import java.util.LinkedList;
import java.util.Stack;

var vertices = LinkedList<String>();
var adjacencyList = LinkedList<LinkedList<String>>();
var visited: BooleanArray = booleanArrayOf();

class DFSIteration {

    fun insertVertex(vertex: String) {

        vertices.add(vertex);
    }

    fun constructAdjacencyList(vtx: String, adjcVertex: String) {

        var vtxIndex = vertices.indexOf(vtx);

        adjacencyList.add(LinkedList<String>());
        adjacencyList.get(vtxIndex).add(adjcVertex);
    }

    fun depthFirstSearch(sourceTemp: String) {

        var source = sourceTemp;
        var sourceIndex = vertices.indexOf(source);

        visited[sourceIndex] = true;

        var stack = Stack<String>();

        stack.push(source);

        print("$source --> ");

        while (!stack.empty()) {

            source = stack.peek();

            sourceIndex = vertices.indexOf(source);

            var str = "";

            var iter = adjacencyList.get(sourceIndex).iterator();

            while (iter.hasNext() ) {

                str = iter.next();

                var i = vertices.indexOf(str);

                if (visited[i] == false) {

                    stack.push(str);
                    visited[i] = true;
                    print("$str --> ");
                    break;
                }
            }

            if (!stack.peek().equals(str)){
                stack.pop();
            }
        }
        println("\b\b\b\b");
    }
}

fun main(arr: Array<String>) {

    var V = 6;

    var dfsIteration = DFSIteration();

    visited = BooleanArray(V)

    adjacencyList = LinkedList<LinkedList<String>>();

    vertices = LinkedList();

    // Insert Vertices

    dfsIteration.insertVertex("a");
    dfsIteration.insertVertex("b");
    dfsIteration.insertVertex("c");
    dfsIteration.insertVertex("d");
    dfsIteration.insertVertex("e");
    dfsIteration.insertVertex("f");

    dfsIteration.constructAdjacencyList("a", "c");
    dfsIteration.constructAdjacencyList("a", "d");

    dfsIteration.constructAdjacencyList("b", "d");
    dfsIteration.constructAdjacencyList("b" ,"e");
    dfsIteration.constructAdjacencyList("b" ,"c");

    dfsIteration.constructAdjacencyList("c", "a");
    dfsIteration.constructAdjacencyList("c", "b");
    dfsIteration.constructAdjacencyList("c", "e");

    dfsIteration.constructAdjacencyList("d", "a");
    dfsIteration.constructAdjacencyList("d" ,"b");
    dfsIteration.constructAdjacencyList("d", "e");
    dfsIteration.constructAdjacencyList("d", "f");

    dfsIteration.constructAdjacencyList("e", "b");
    dfsIteration.constructAdjacencyList("e", "c");
    dfsIteration.constructAdjacencyList("e", "d");
    dfsIteration.constructAdjacencyList("e", "f");

    dfsIteration.constructAdjacencyList("f", "d");
    dfsIteration.constructAdjacencyList("f", "e");

    dfsIteration.depthFirstSearch("a");
}

Output :

a --> c --> b --> d --> e --> f

We have implemented Depth First Search (DFS) on the below graph :

We can take various ways to navigate the graph using Depth First Search (DFS). Just remember our main intension is to visit all the vertices.

In this case we have covered the graph in the following path :

a --> c --> b --> d --> e --> f

Let us see how ?

Code Explanation for DFS - Depth First Search - Iterative :

Below code explains the methods :

fun constructAdjacencyList(vtx: String, adjcVertex: String)

fun insertVertex(vertex: String)

Almost the same we have discussed in BFS. You can skip it if you wane to.

Click Here - To understand the details of the methods 'fun constructAdjacencyList(vtx: String, adjcVertex: String)' and 'fun insertVertex(vertex: String)'.

Let's list out, what all do we need to support Depth First Search Data Structure.

We need a Linked List to store the vertices.

We need a doubly Linked List to store the adjacency linked list.

We need a Queue and an array to store its Levels.

We need a boolean array to store the Vertices that are already visited.

Now, let us see the above code.

We have a Linked List to store the Vertices.

var vertices = LinkedList<String>();

We also have a doubly Linked List to store the Adjacency List.

var adjacencyList = LinkedList<LinkedList<String>>();

Similarly, we have a stack defined inside the method depthFirstSearch(...).

var stack = Stack<String>();

And, there is a boolean array to store the Vertices that are visited.

var visited: BooleanArray = booleanArrayOf();

Note : The variables are marked as static, so that they could be accessed from main(...) method.

So, the first thing we will do is, insert the Vertices to the LinkedList<String> vertices Linked List.

vertices = LinkedList();

dfsIteration.insertVertex("a");
dfsIteration.insertVertex("b");
dfsIteration.insertVertex("c");
dfsIteration.insertVertex("d");
dfsIteration.insertVertex("e");
dfsIteration.insertVertex("f");

Explanation of 'fun insertVertex(vertex: String)' method

fun insertVertex(vertex: String) {

	vertices.add(vertex);
}

fun insertVertex(vertex: String) is quite simple.

There is just one statement in it.

vertices.add(vertex);

It accepts String vertex as a parameter and adds it to the Linked List, vertices.

The next thing we will do is, create an Adjacency List to track the Adjacent Vertices.

Let us take the example of vertex a, to explain the creation of Adjacency List.

As we have seen, a has two adjacent vertices(i.e. c and d). And we have used the constructAdjacencyList(...) method to construct the Adjacency Matrix.

dfsIteration.constructAdjacencyList("a", "c");
dfsIteration.constructAdjacencyList("a", "d");

Note : Just remember, creating an Adjacency List above is same as creating an Edge. As the Adjacency List is actually a group of Edges.

Explanation of 'fun constructAdjacencyList(vtx: String, adjcVertex: String)' method

fun constructAdjacencyList(vtx: String, adjcVertex: String) {

	var vtxIndex = vertices.indexOf(vtx);

	adjacencyList.add(LinkedList<String>());
	adjacencyList.get(vtxIndex).add(adjcVertex);
}

Although, the above method is explained in Adjacency List Code tutorial. I will give a brief explanation in this tutorial.

When a method call is made,

The variable vtx is assigned with value "a" and adjcVertex is assigned with "b".

Now, the first line,

var vtxIndex = vertices.indexOf(vtx);

Calculates the index/position of Vertex a. And as we can see the index a is 0.

Now, in the next line,

adjacencyList.add(LinkedList<String>());

We are initialising the first row of the 2D Linked List, adjacencyList.

But with what ?

We are initialising it with a Linked List LinkedList<String>(),

adjacencyList.add(LinkedList<String>());

So that the first row can hold the Adjacency List for vertex a.

a   ---   c ---> d

Similarly, the second row should hold the Adjacency List for vertex b and so on.

And in this iteration, our target is to find out the first row(To create an Adjacency List for vertex a) and insert vertex b to it.

And the below code does that.

adjacencyList.get(vtxIndex).add(adjcVertex);

We get the index of vertex a

vtxIndex = vertices.indexOf(vtx);

As we know vtx is a.

Then add adjcVertex(That contains vertex c) to the 0th index of adjacencyList.

adjacencyList.get(0).add("c");

And following it we form the Adjacency List.

Now, we come across the most important method fun depthFirstSearch(sourceTemp: String) that performs the Depth First Search (DFS).

Explanation of 'fun depthFirstSearch(sourceTemp: String)' method

fun depthFirstSearch(sourceTemp: String) {

	var source = sourceTemp;
	var sourceIndex = vertices.indexOf(source);

	visited[sourceIndex] = true;

	var stack = Stack<String>();

	stack.push(source);

	print("$source --> ");

	while (!stack.empty()) {

		source = stack.peek();

		sourceIndex = vertices.indexOf(source);

		var str = "";

		var iter = adjacencyList.get(sourceIndex).iterator();

		while (iter.hasNext() ) {

			str = iter.next();

			var i = vertices.indexOf(str);

			if (visited[i] == false) {

				stack.push(str);
				visited[i] = true;
				print("$str --> ");
				break;
			}
		}

		if (!stack.peek().equals(str)){
			stack.pop();
		}
	}
	println("\b\b\b\b");
}

We have called the fun depthFirstSearch(sourceTemp: String) from the main method passing a as the parameter.

dfsIteration.depthFirstSearch("a");

So, the first thing we will do is, take the index of a,

var sourceIndex = vertices.indexOf(source);

Now, if we see the List of vertices,

We can see that a lies in index 0.

Next, we mark a as visited,

visited[sourceIndex] = true;

in the visited[] array,

visited[0] = true;

Then, we create the stack,

var stack = Stack<String>();

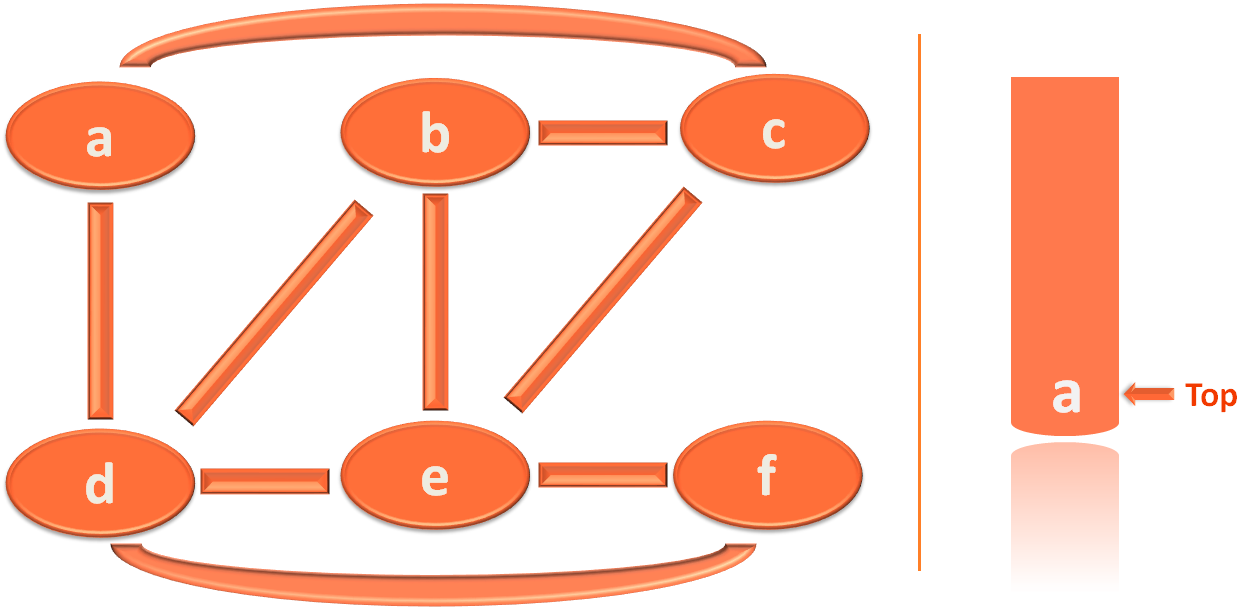

And the immediate next thing we do is, push a to the stack.

stack.push(source);

Then we print the vertex a.

print("$source --> ");

Output :

a -->

Next, we enter the while() loop that continues until the stack is not empty.

	while (!stack.empty()) {

		source = stack.peek();

		sourceIndex = vertices.indexOf(source);

		var str = "";

		var iter = adjacencyList.get(sourceIndex).iterator();

		while (iter.hasNext() ) {

			str = iter.next();

			var i = vertices.indexOf(str);

			if (visited[i] == false) {

				stack.push(str);
				visited[i] = true;
				print("$str --> ");
				break;
			}
		}

		if (!stack.peek().equals(str)){
			stack.pop();
		}
	}

In the while() loop, we take the top element(i.e. a) in the source variable.

source = stack.peek();

Note : Just remember, stack.peek() does not pop the top element from the stack. It just shows the top element of the stack.

The we take the index of the top element(0 is the index of a).

sourceIndex = vertices.indexOf(source);

Then comes the while(...) loop, where we find the find the adjacent vertices of the top element(i.e. a).

var iter = adjacencyList.get(sourceIndex).iterator();
while (iter.hasNext() ) {
	str = iter.next();
	var i = vertices.indexOf(str);
	if (visited[i] == false) {

		stack.push(str);
		visited[i] = true;
		print("$str --> ");
		break;
	}
}

And the for loop itself needs a little explanation.

The first statement of the for loop (i.e. The initialisation section of the loop),
```
var i = vertices.indexOf(str);
```
is where we get the Adjacent Vertices of vertex c in the Iterator<String> iter.

Thinking How ?

Well ! The adjacencyList is a 2D Linked List that stores the adjacent vertices. And the trick is played in,
```
adjacencyList.get(sourceIndex).iterator()
```
As we have seen, the sourceIndex is 0 (Because the index of vertex a is 0).

And the iter variable of Iterator gets the adjacency list of vertex a in it.

The next statement,
```
iter.hasNext()
```
tells the for loop to continue until there are elements in the list.

And ! Well ! There is no increment section. We have left it blank

iter variable of Iterator, stores the Adjacency List of vertex a in it.So, iter has the elements c and d in it.

Now, str contains the first adjacent vertex c.

str = iter.next();

Next, we find the index of vertex c,

var i = vertices.indexOf(str);

Now, if we see the List of vertices,

We can see that c lies in index 2.

So, we check if c is visited or not.

if (visited[i] == false) {

	stack.push(str);
	visited[i] = true;
	System.out.print(""$str --> ");
	break;
}

Now, if we check the visited array,

We found that visited[2] = false and we get into the if statement.

So, we push c to the Queue.

And marked visited[2] = true,

visited[i] = true;

In the visited[] array,

then we break out of the for loop

break;

After getting out of the for loop, we check if the value inside the str variable and the top element are equal or not.

if (!stack.peek().equals(str)){
	stack.pop();
}

In this case str has c inside it and the top element of the stack is also c.

So, we don't pop c out of the stack and continue with the while loop.

Note : The statement if (!stack.peek().equals(str)) says when we reach a vertex whose adjacent vertices are already visited. The statement stack.push(str) will never be executed. And, str will have a value that is not equal to the top element of the stack.

Similarly, we repeat the same process until all the vertices are visited.

Now, let's visit the while() loop again.

The top element is f now,

source = stack.peek();

So, the value of source variable is f and

sourceIndex = vertices.indexOf(source);

the value of sourceIndex variable would be 5.

Now, the adjacent vertices of f are d and e.

while (iter.hasNext() )

So, the variable str would contain d(Since, the adjacent vertices of f are d and e) in the first iteration and would be e in the second iteration.

str = iter.next();

var i = vertices.indexOf(str);

And both e and d are visited. So, the lines under the if statement are never visited.

if (visited[i] == false) {

	stack.push(str);
	visited[i] = true;
	System.out.print("$str --> ");
	break;
}

So, the while loop completes. And the value of the variable str would be e.

So, after getting out of the for loop, we check if the value inside the str variable and the top element are equal or not.

if (!stack.peek().equals(str)){
	stack.pop();
}

In this case the top element is f and the value in str is e.

And the if(!stack.peek().equals(str)) condition matches and f is popped out of the queue.

stack.pop();

Continuing in the same way, all the elements are popped out of the Queue and the execution ends.

❮❮ PREV NEXT ❯❯
